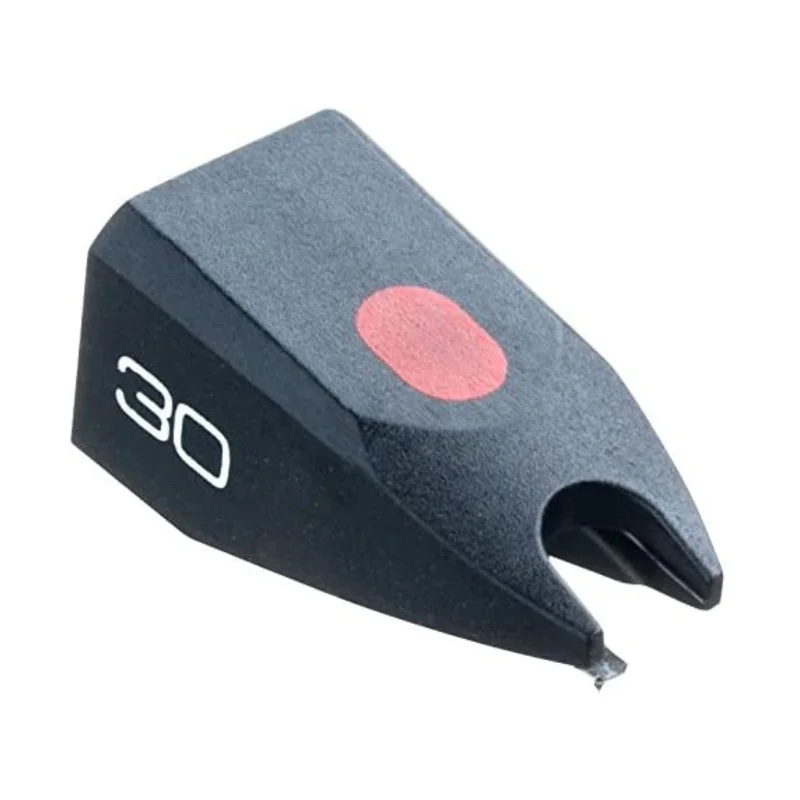

Ortofon Stylus 30
Technical specifications
Frequency range – 20-29.000 Hz
Frequency response – 20-20.000 Hz + 2 / – 3 dB
Tracking ability at 315Hz at recommended tracking force *) – 90 µm
Compliance, dynamic, lateral – 25 µm/mN
Stylus type – nackte Fine LIne
Stylus tip radius – r/R 8/40 µm
Equivalent stylus tip mass – 0,3 mg
Tracking force range – 1.25-1.75 g (12.5-17.5 mN)
Tracking force, recommended – 1.5 g (15 mN)
Tracking angle – 20°
Stylus colour – Black
Recommended for following cartridges: Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H, TM 30H
*) Typical value
